EPV-3-SA-90, Enclosure Protection Vent, Side Mount
[ Ships within 1 Day ]
Enclosure Protection Vent, EPV-3-SA-90
- Side mount, 1 - 1/4" (32.0 mm) vent size
- Spark arrestor included
- Seamless cap
- Friction free valve assembly
- Spark arresting exhaust
The EPV (enclosure protection vents) are self-seating, gravity controlled, low pressure relief valve designed to ventilate excessive enclosure pressures created by the Rapid Exchange® process, or the failure of the enclosure pressure control devices.

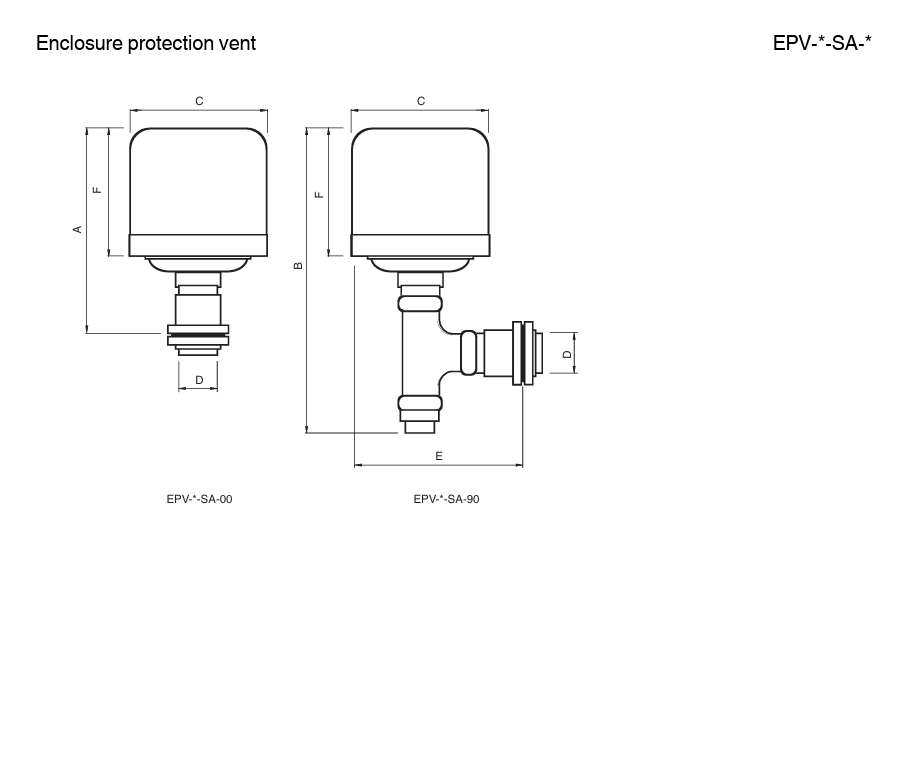

Each vent features a seamless cap, a spark arresting (SA) style exhaust element, a friction-free valve assembly, a base, and a mounting hub. The mounting hub, along with associated pipe fittings, permits direct mounting through a round cutout on the top or side of a protected enclosure.
This device functions only in conjunction with Pepperl+Fuchs Bebco EPS® purge systems, to reduce the hazardous (classified) area rating within protected enclosure(s), in accordance with the NEC - NFPA 70, Article 500, NFPA 496, and ISA 12.4.
